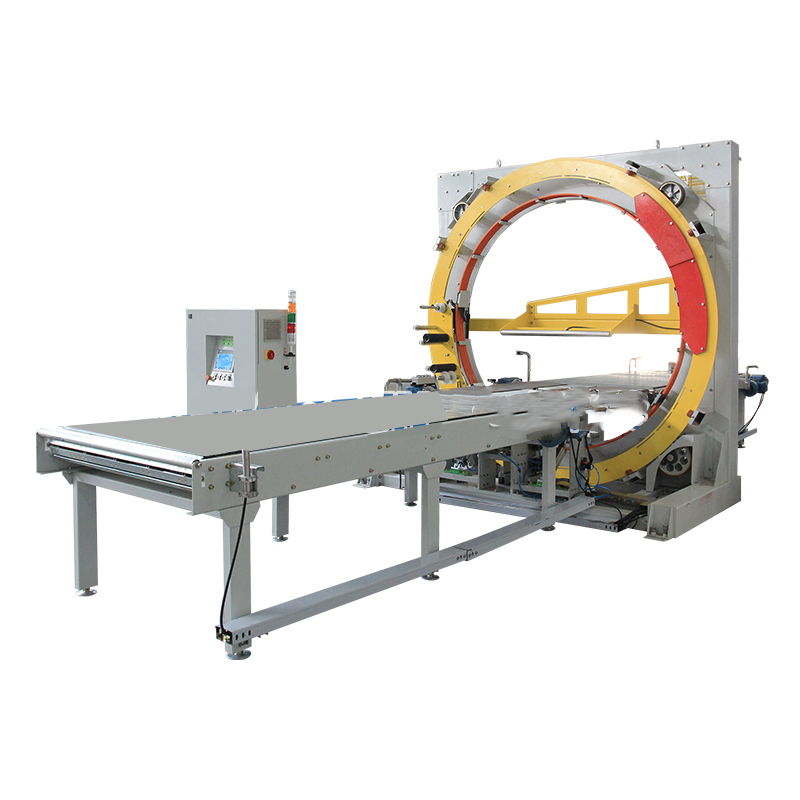

Mh-ctr-200bd horizontal winding machine
Mh-ctr-200bd horizontal winding machine
Model: mh-ctr-200bd
Speed: 5-30 rpm
Transmission mode: friction wheel
Film width: 250mm (10 ")
Pre stretching percentage: 250% (adjustable)
Table height: 850 Mm (adjustable)
Wrapping capacity: Φ 900~1750mm
Contracting capacity: width 750 ~ 1750mm, maximum diagonal 1950mm
Machine size: l1630mm × W2725mm × H2725mm
Machine weight: 1260kg
Model: mh-ctr-200bd
Speed: 5-30 rpm
Transmission mode: friction wheel
Film width: 250mm (10 ")
Pre stretching percentage: 250% (adjustable)
Table height: 850 Mm (adjustable)
Wrapping capacity: Φ 900~1750mm
Contracting capacity: width 750 ~ 1750mm, maximum diagonal 1950mm
Machine size: l1630mm × W2725mm × H2725mm
Machine weight: 1260kg
