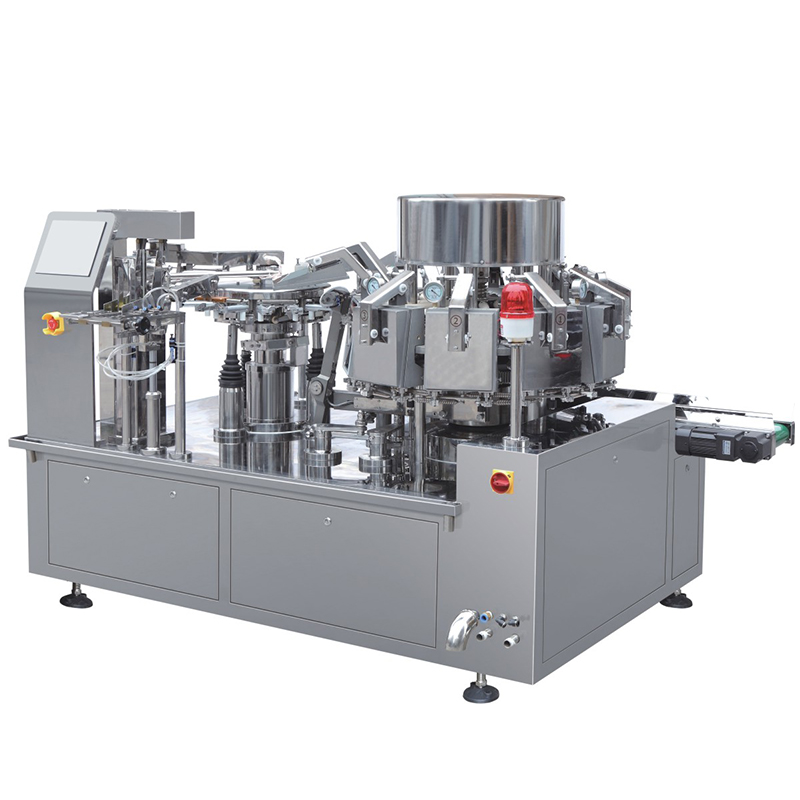

ZK10-200 bag feeding vacuum packaging machine
Product features
1. The full-automatic bag feeding vacuum packaging series can meet various functions, and other equipment can be integrated.
2. The rotary full-automatic bag feeding vacuum packaging machine is composed of two separate rotary bodies (filling system and vacuum system respectively). The filling system is intermittent rotary operation, and the vacuum system is continuous rotary movement.
3. Quickly change the packing bag specification, and the width of the automatic bag feeding device can be automatically adjusted at one time.
4. Comply with the hygienic standards of food processing machinery. The parts on the machine in contact with materials or packaging bags are processed with stainless steel or other materials that meet the requirements of food hygiene, which can improve the hygiene and safety of food.
5. It is easy to clean and can be cleaned in the vacuum chamber
6. The loss of packaging materials is low. The machine uses prefabricated packaging bags with good packaging bag pattern and good sealing quality, so as to improve the product grade. The bag can be recycled without blanking and sealing. It does not waste the bag.
7. Easy operation. PLC plus pod (touch screen) electrical control system is adopted, with friendly man-machine interface and convenient operation. It can automatically adjust the angle and time of pneumatic components.
8. Sealing temperature monitoring function. If the heating tube or thermocouple is damaged, it will display an alarm in the touch screen.
| Model |
HL6/8-ZK10-200 |
HL6/8-ZK10-300 |
|
Bag specification |
W:70-220mm L:80-300mm |
W:100-320 L: 100-500 |
|
Bag type |
Self standing bag, handbag, zipper bag, four side sealed bag, three side sealed bag, paper bag, composite bag, etc |
same |
|
Filling range |
20-1000g | 500-2500g |
|
Weighing accuracy |
Deviation error ≤± 1% |
same |
|
Packaging speed |
35-60 packs / sub (determined by product characteristics and filling weight) |
30-40 |
|
Scope of application |
All kinds of duck neck chicken leg pickles, dried tofu, pickled mustard, meat products, eggs and other materials requiring vacuum packaging |
same |
|
Host weight |
2400kg |
2800 |
|
Vacuum strength |
≤-0.1mpa |
same |
|
Host power |
4kw (excluding vacuum pump) |
5kw |
|
Driving power supply |
Three phase five wire 380V 50HZ |
same |
|
Overall dimension |
2200×2200×1600mm(excluding hoist) |
2400*2300*1700 |
|
Gas consumption |
≥0.4m3/ Min (compressed air is provided by the user) |
same |
|
Cooling water |
Cooling water: 15 ℃ - 20 ℃, 3L / min litres / min (cooling water recommended) |
same |
