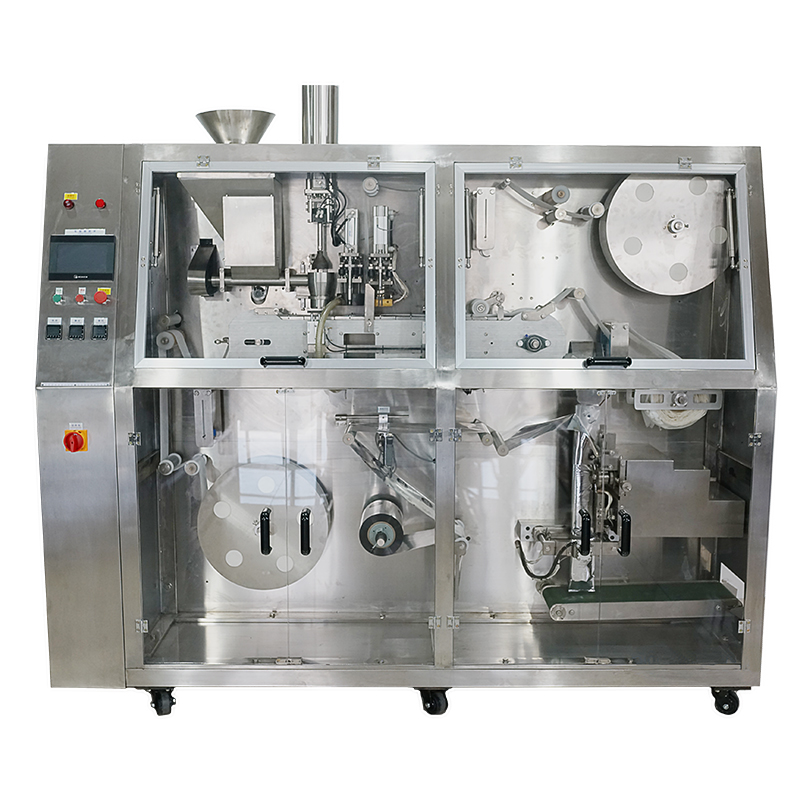

Ys-496 coffee cake inner and outer bag packaging machine
Characteristic
1. It is suitable for tea powder and coffee powder materials.
2. The machine has the functions of automatic bag making, metering, filling, sealing, cutting and so on.
3. PLC controller is used to control the whole machine action, touch screen operation interface, compact structure, man-machine interface design, convenient operation, easy adjustment and easy maintenance.
4. All accessible material parts are made of SUS304 stainless steel, which can ensure excellent product hygiene.
5. Packaging materials: tea filter paper, composite membrane.
Sealing method: three side sealing
Technical parameter
Measurement range: 4 - 8g (12 ~ 24 ml)
Inner pocket size: (￠): 55 - 62 mm
Outer bag size: l: 100 mm W: 85 mm
Packing speed (L * w * h): 10 - 15 bags / min
Overall dimension: 780 * 2020 * 1850 mm
Overall weight: 1000 kg
Total power: AC220V / 50Hz / 3.5kw
Air source: ≥ 0.6m 3/ min

Optional equipment
Code printer
