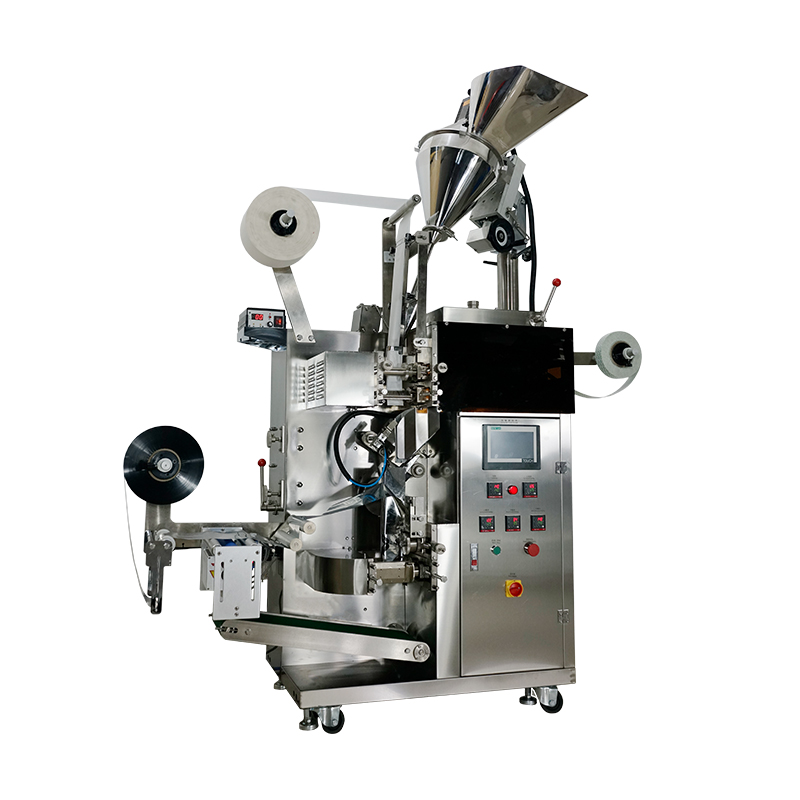

Ys-169f new generation tea bag powder inner and outer bag packaging machine
Characteristic
1. It is suitable for one-time packaging of small particles such as tea, medicinal tea, health tea and grass roots.
2. The film pulling of inner and outer bags is controlled by stepping motor, the bag length is stable and the positioning value is accurate.
3. The temperature controller is adjusted by PID, and the temperature control is more accurate.
4. Using PLC to control the action of the whole machine and display the man-machine interface, the hygiene of the product can be excellent.
5. Packaging materials: tea filter paper, cotton thread, composite membrane and label.

Sealing method: three side sealing

Technical parameter
Measurement range: 3 - 10 g (1.6 ~ 26 ml)
Inner pocket size: l: 50 - 70 mm W: 45 - 80 mm
Outer bag size: l: 80 - 120mm W: 75 - 95mm
Packing speed: 30-40 bags / min
Overall dimension (L * w * h): 1750 * 740 * 1950mm
Overall weight: 550 kg
Total power: AC220V / 50Hz / 3.7KW
Air source: ≥ 0.4m 3/ min
Optional equipment
Code printer
