1.Product parameters

Brand:Yifei mh-x201 high platform

Suitable for broadband thick: The width is 9 ~ 15mm, the default hair is 12mm, and the strip thickness is 0.6 ~ 1mm (0.6 ~ 0.8mm is better)

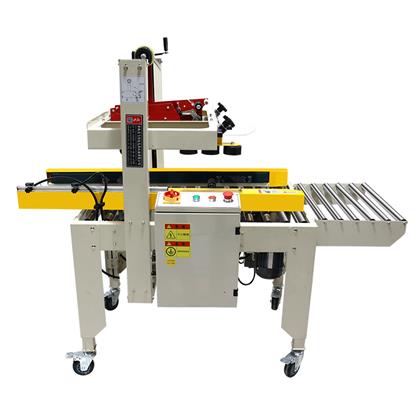

Brand:Yifei fxj-5050CII
Power Supply:380V/50HZ 0.2KW
Carton size:L150-∞ W150-500mm H150-500mm
Machine weight:138kg
Sealing speed:About 20 cases / min
tape width:36~72mm
Machine size:950*810*1430mm

2.Product introduction

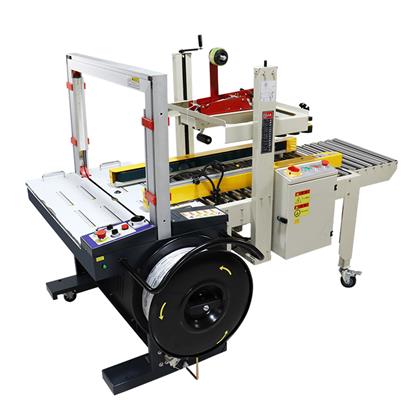

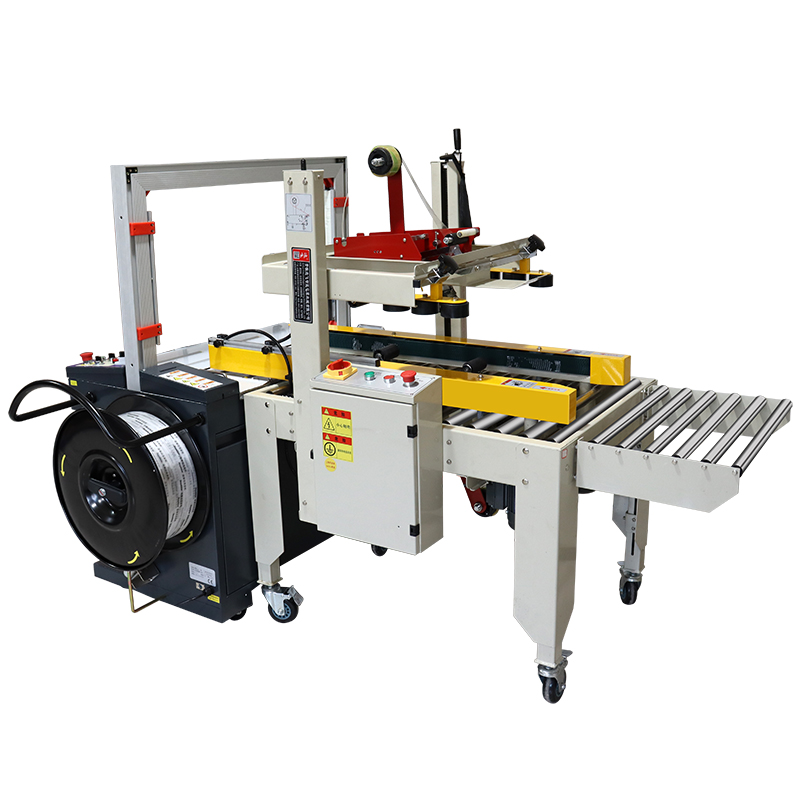

The box sealing and packing machine is an automatic equipment integrating box sealing and packing. It is composed of a full-automatic packer and a box sealing machine. The machine adopts the principle of lengthening the belt of the box sealing machine and uses the driving belt of the box sealing machine to transport the goods to the table of the packer. It not only solves the needs of customers for the overall operation of box sealing and packaging, but also greatly saves production costs for customers. It is an economic and practical automatic packaging equipment, which is mainly suitable for carton packaging, which is economical and fast, It is easy to adjust and can complete the up and down sealing action at one time. It can also be used together with the assembly line. It is widely used in household appliances, textiles, food, department stores, medicine, chemical industry and other industries.

3. Product details
1. Adjustable height and width: adjust the height and width of the machine by adjusting the handle to adapt to the size of cartons of different specifications and a wide range of packaging.
2 photoelectric detection: imported photoelectric detection is adopted to detect the packaging position of cartons, which can automatically pack 1-2 times.
3. Widened and thickened conveyor belt: well-known brand conveyor belt has strong grip, stable transportation, large bearing weight, centered sealing of adhesive tape and durability.

4.Product features
Sealing and packing are carried out at the same time, with high speed, high efficiency and small volume
The packing position of cartons can be adjusted freely, and it is convenient to switch one or two cartons.
It can be operated alone or matched with automatic packaging line.
Table height, carton width and height can be adjusted independently, which is simple and practical.
The machine is stable and durable with long service life. Movable casters, easy to move, easy and labor-saving.
